VSCXML Generator

The VSCXML Generator transforms W3C SCXML state machine definitions into production-ready, optimized native code for Java, JavaScript, C#, C, Python, Go, and Structured Text (IEC 61131-3). Available for Windows, macOS, and Linux.

The generator comes in two forms:

• VSCXML-Generator-CLI — Command-line tool with the scxml-gen command
• VSCXML-Generator — Visual desktop app with a graphical interface

Installation#

Download the installer for your platform:

After installation, the generator appears in your system's application menu as VSCXML Generator. It opens a terminal shell with the scxml-gen command pre-configured.

Quick Start#

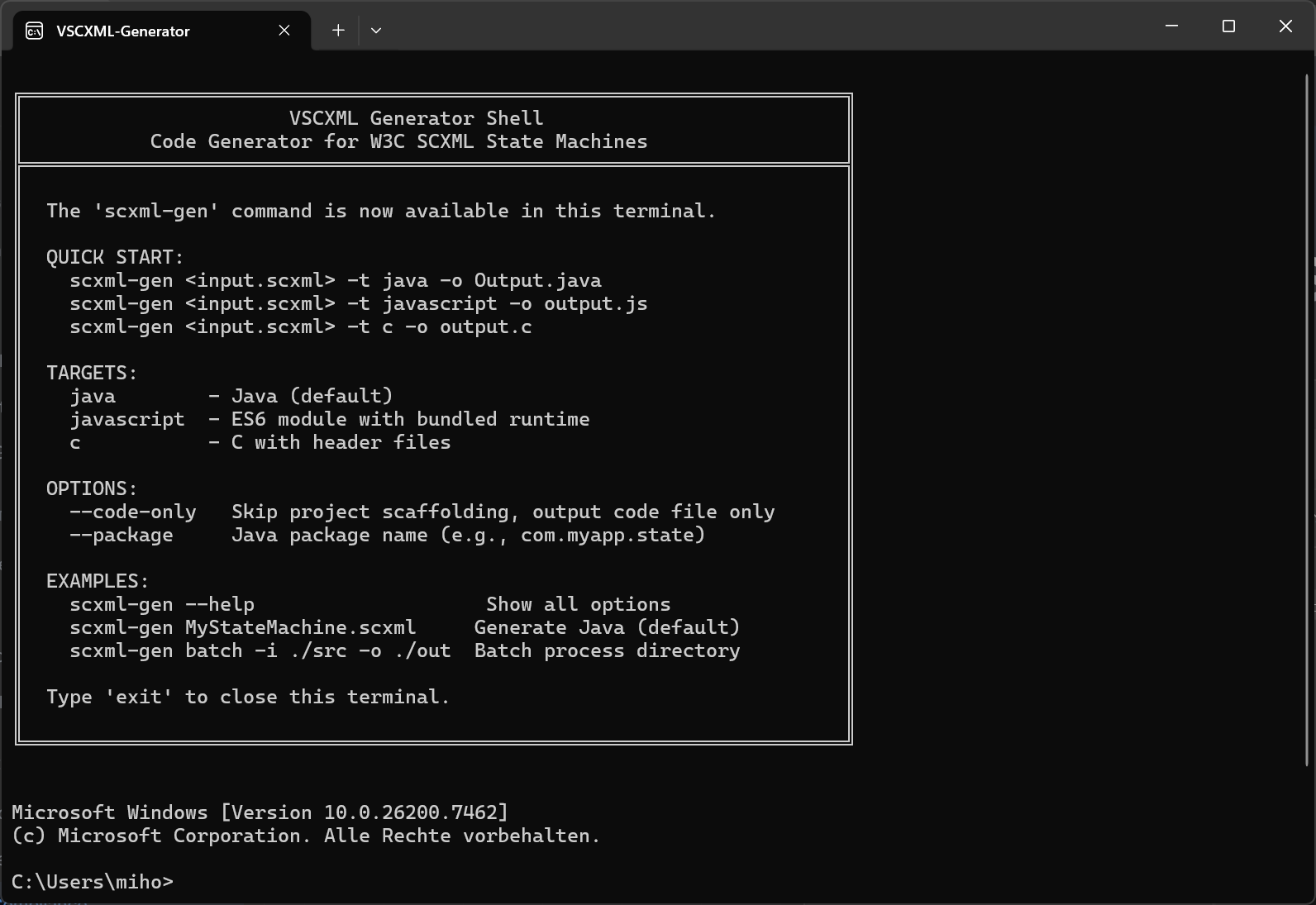

Launch the VSCXML Generator from your application menu. The shell displays a quick reference (see screenshot above)

Basic Usage#

# Generate Java (default target)
scxml-gen traffic.scxml

# Generate Java with package name
scxml-gen traffic.scxml -t java -o TrafficLight.java --package com.myapp

# Generate JavaScript ES6 module
scxml-gen traffic.scxml -t javascript -o traffic.js

# Generate C# with namespace
scxml-gen traffic.scxml -t csharp -o TrafficLight.cs --namespace MyApp

# Generate C with header files
scxml-gen traffic.scxml -t c -o traffic.c

# Generate Python
scxml-gen traffic.scxml -t python -o traffic_light.py

# Generate Go
scxml-gen traffic.scxml -t go -o traffic_light.go

# Generate Structured Text (IEC 61131-3)
scxml-gen traffic.scxml -t st -o TrafficLight.st

Target Platforms#

Each target is optimized for its platform with native idioms and zero unnecessary overhead. All targets achieve 100% W3C ECMAScript compliance (except ST, which uses null and native-st datamodels).

Command-Line Reference#

Basic Syntax#

scxml-gen [options] <input-file.scxml>

Options#

Batch Processing#

Process multiple SCXML files in a directory:

scxml-gen batch -i ./src -o ./out

Examples#

# Java with package
scxml-gen workflow.scxml -o Workflow.java --package com.myapp.workflow

# JavaScript ES module
scxml-gen game.scxml -t javascript -o game.js

# C# with namespace
scxml-gen controller.scxml -t csharp -o Controller.cs --namespace MyApp.Controllers

# C for embedded (code only, no scaffolding)
scxml-gen controller.scxml -t c --code-only -o controller.c

# Python with bundled runtime
scxml-gen workflow.scxml -t python -o workflow.py --bundle-runtime

# Go
scxml-gen service.scxml -t go -o service.go

# Bundle invoke children automatically
scxml-gen parent.scxml -t javascript -o Parent.js --bundle-auto

# Bundle specific children
scxml-gen parent.scxml -t c --bundle child1.scxml --bundle child2.scxml

# Show all options
scxml-gen --help

Generated Code Architecture#

The generator produces transpiled state machines—not interpreted SCXML at runtime. This means:

• No runtime parsing - SCXML is compiled away at build time
• Type-safe code - Generated code uses proper types for each platform
• Optimal performance - Direct state transitions, no XML processing
• Small footprint - Only the code you need, nothing extra

┌──────────────────────┐
│   traffic.scxml      │
│   (Source)           │
└──────────┬───────────┘
           │  scxml-gen -t java
           ▼
┌──────────────────────┐
│  TrafficLight.java   │
│  - No SCXML parsing  │
│  - Direct dispatch   │
│  - Native types      │
└──────────────────────┘

Java Target#

Generated API#

import com.example.TrafficLight;

// Create and start
TrafficLight sm = new TrafficLight();
sm.start();

// Send events
sm.send(TrafficLight.EVT_TIMER);
sm.send(TrafficLight.EVT_EMERGENCY);

// Query state
if (sm.isInState("red")) {
    System.out.println("Stop!");
}

// Access datamodel
int count = sm.getCounter();

Runtime Library#

For ECMAScript datamodel, add a JavaScript engine:

dependencies {
    // Choose one:
    implementation 'org.mozilla:rhino:1.7.15'       // Rhino
    implementation 'org.graalvm.polyglot:js:24.0.0' // GraalJS (for Native Image)
}

See Java Target Guide for complete documentation.

JavaScript Target#

Generated API#

import { TrafficLight } from './traffic.js';

// Create and start
const sm = new TrafficLight();
sm.setLogger((msg) => console.log('[SM]', msg));
sm.start();

// Send events
sm.send('timer');
sm.send('emergency');

// Query state
if (sm.isInState('red')) {
    console.log('Stop!');
}

// Access datamodel
console.log(sm.data.counter);

See JavaScript Target Guide for complete documentation.

C# Target#

Generated API#

using MyNamespace;

// Create and start
var sm = new TrafficLight();
sm.Start();

// Send events
sm.Send("timer");
sm.Send("emergency");

// Query state
if (sm.IsInState("red")) {
    Console.WriteLine("Stop!");
}

// Access datamodel
Console.WriteLine(sm.Counter);

Runtime Library#

For ECMAScript datamodel, add the Jint NuGet package:

<PackageReference Include="ScxmlGen.Runtime" Version="1.0.0" />
<PackageReference Include="Jint" Version="3.1.6" />

See C# Target Guide for complete documentation.

C Target#

Generated API#

#include "traffic.h"

int main() {
    TrafficLight sm;
    TrafficLight_init(&sm);
    TrafficLight_start(&sm);

    // Send events (O(1) dispatch with generated constants)
    TrafficLight_send(&sm, EVT_TIMER, NULL);
    TrafficLight_send(&sm, EVT_EMERGENCY, NULL);

    // Query state
    if (TrafficLight_is_in(&sm, S_RED)) {
        printf("Stop!\n");
    }

    return 0;
}

Memory Model#

The C target is designed for resource-constrained environments:

See C Target Guide for complete documentation.

Python Target#

Generated API#

from traffic_light import TrafficLight

# Create and start
sm = TrafficLight()
sm.start()

# Send events
sm.send("timer")
sm.send("emergency")

# Query state
if sm.is_in_state("red"):
    print("Stop!")

# Access datamodel
print(sm.counter)

Runtime Library#

For ECMAScript datamodel, install dukpy:

pip install scxmlgen        # Runtime library
pip install dukpy>=0.3.0    # ECMAScript engine

See Python Target Guide for complete documentation.

Go Target#

Generated API#

import "github.com/scxmlgen/scxmlgen"

// Create and start
sm := NewTrafficLight()
sm.Start()

// Send events
sm.Send(scxmlgen.NewEvent("timer"))
sm.Send(scxmlgen.NewEvent("emergency"))

// Query state
if sm.IsInState("red") {
    fmt.Println("Stop!")
}

// Access datamodel
fmt.Println(sm.Counter)

Runtime Library#

For ECMAScript datamodel, install goja:

go get github.com/scxmlgen/scxmlgen    # Runtime library
go get github.com/dop251/goja          # ECMAScript engine

See Go Target Guide for complete documentation.

Structured Text Target#

Generated API#

PROGRAM Main
VAR
    sm : TrafficLight;
END_VAR

// Start
sm.start := TRUE;
sm();
sm.start := FALSE;

// Send events
sm.event := TrafficLight_Events.EVT_TIMER;
sm();
sm.event := TrafficLight_Events.EVT_NONE;

// Query state
sm.stateQuery := TrafficLight_States.S_RED;
sm();
IF sm.queryResult THEN
    // State is active
END_IF

PLC Platform Options#

# Standard (CODESYS 3rd edition, methods inside FUNCTION_BLOCK)
scxml-gen machine.scxml -t st -o Machine.st

# IEC-strict (no vendor pragmas or access modifiers)
scxml-gen machine.scxml -t st -o Machine.st --plc-platform iec-strict

# OpenPLC / 2nd edition (standalone FUNCTIONs, portable)
scxml-gen machine.scxml -t st -o Machine.st --plc-platform openplc

See Structured Text Target Guide for complete documentation.

VSCXML-Generator Desktop App#

The VSCXML-Generator is a visual desktop application that provides the same code generation capabilities as the CLI but with a graphical interface.

Features#

• Built-in SCXML editor with syntax highlighting (Monaco editor)
• Visual target selection — Choose from all 7 targets with a dropdown
• Live code preview — See generated code as you edit
• Project generation — Complete runnable projects with one click
• Multiple output formats — Individual files or ZIP archives

How to Use#

1. Launch VSCXML-Generator from your application menu
2. Open or paste your SCXML source
3. Select a target language
4. Configure options (package name, namespace, etc.)
5. Click Generate to produce the code

The desktop app automatically manages the VSCXML-Generator-CLI server in the background. No manual server setup required.

AI Integration (MCP)#

The Generator is also accessible via the VSCXML MCP Server, enabling AI assistants to generate code directly:

User: "Generate a complete Java project and a Python project for this state machine"

Claude (via MCP):
1. scxml_generate_project(target="java", ...)
2. scxml_generate_project(target="python", ...)

Install the MCP server for Claude Code:

claude mcp add vscxml -- npx -y @vscxml/mcp

Invoke Bundling#

For state machines that use <invoke> to spawn child machines, bundle them at compile time:

Automatic Bundling#

scxml-gen parent.scxml -t javascript --bundle-auto -o parent.js

The generator finds all <invoke src="..."> references and bundles them.

Manual Bundling#

scxml-gen parent.scxml -t c \
    --bundle child1.scxml \
    --bundle child2.scxml \
    -o parent.c

Benefits of Bundling#

• Single output file - No external file dependencies
• No runtime parsing - Children are compiled, not interpreted
• Works offline - Perfect for embedded systems
• Faster startup - No file I/O at runtime

Datamodels#

The datamodel attribute determines how expressions are evaluated:

See Datamodels Guide for detailed comparison.

Workflow Integration#

The Generator is the final step in the vscxml workflow:

┌─────────────────┐     ┌─────────────────┐     ┌─────────────────┐
│  SCXML Editor   │────▶│    Simulator    │────▶│    Generator    │
│  (Design)       │     │  (Test & Debug) │     │  (Build Code)   │
└─────────────────┘     └─────────────────┘     └─────────────────┘
                                                        │
              ┌──────────┬──────────┬──────────┬────────┼────────┬──────────┬──────────┐
              ▼          ▼          ▼          ▼        ▼        ▼          ▼          ▼
         ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────┐
         │  .java  │ │   .js   │ │   .cs   │ │   .c    │ │   .py   │ │   .go   │ │   .st   │
         │  files  │ │  files  │ │  files  │ │  files  │ │  files  │ │  files  │ │  files  │
         └─────────┘ └─────────┘ └─────────┘ └─────────┘ └─────────┘ └─────────┘ └─────────┘

1. Design in the Editor
2. Test with the Simulator
3. Generate production code

W3C Compliance#

The generator produces code that is 100% compliant with the W3C SCXML specification for the ECMAScript datamodel:

• All 181 W3C test cases pass
• Proper event processing semantics
• Correct conflict resolution
• Full support for parallel states, history, invoke

See W3C Compliance Report for detailed test results.

Tips & Best Practices#

1. Use null datamodel for portability - If you don't need expressions, null works identically on all targets

2. Bundle invoke children - Always use --bundle-auto for deployments

3. Use --code-only for integration into existing projects

4. Match target to platform - Use C for embedded, Java for servers, JS for web

5. Test before generating - Run through the Simulator first to catch logic errors
